Interpretable Additive Tree Models

Jacob Wang · May 7, 2021

MachineLearning   ModelInterpretation

With the birth of XGBoost, additive tree models have been widely applied in industries (such as LightGBM, CatBoost) due to their state-of-the-art performance and well-engineered parallel acceleration computing. However the one general rule in machine learning field is more complex models that fit well to data are less interpretable. This article will talk about different approaches that let a model “speaks” and explains how the model generate outputs.

• Start with an Example
• Feature Importance from “Inside”
  • Weight (Frequency)
  • Cover
  • Gain
• Feature Importance from “Outside”
  • Permutation Importance
  • LIME
• SHAP: Interpretable Additive Approach
  • Shapley Values

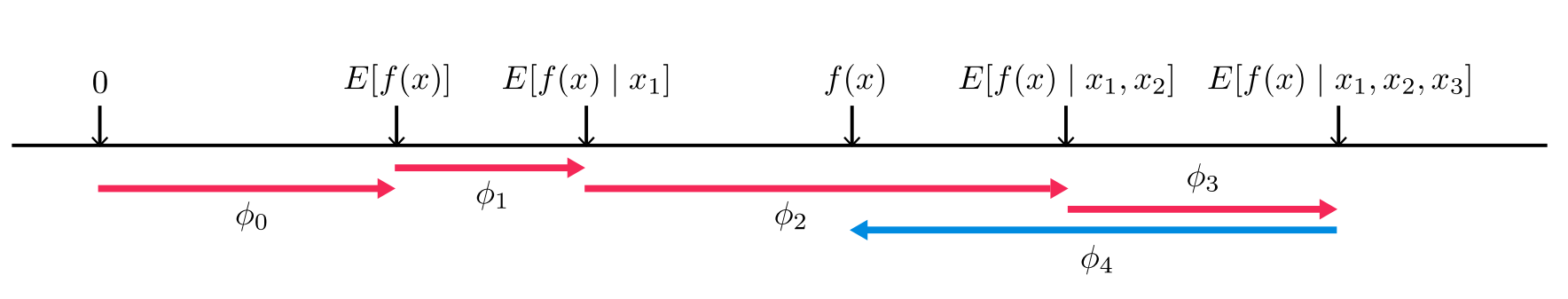

  • From Shapley Value to SHAP (Shapley Additive Explanations)

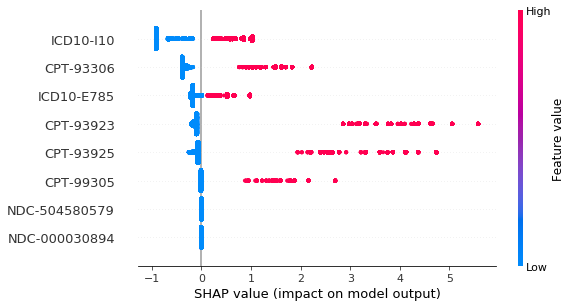

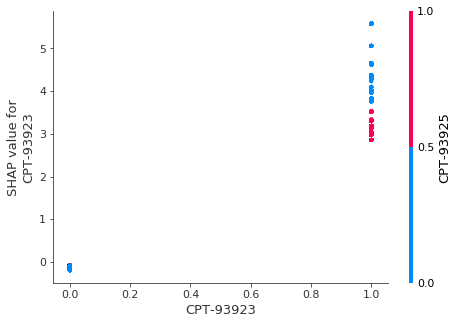

  • Explain XGBoost Model with SHAP and Visualizations
    • Local Explainer
    • Global Explainer

Interpretability of machine learning is vital important in any business applications, which is one of the biggest challenge of machine learning product selling as well. Most data scientists or machine learning engineers often do not focus on buying users trust by explaining reasoning behind a decision in an easy-to-digest way, but spend most of the time trying to boost model performance. I’ve encountered situations so many times that I presented some cool stuffs with confidence to leaderships how magic they are and how much money they’re gonna save for the company, but I was followed by questions like “man this is great, but how does it come to such conclusions”. It’s tough, especially when trying to explain models to non-technical folks who are usually the guys deciding whether to apply your models. When you are trying to train cutting-edge algorithms, it equally increase the difficulty of model interpretation, because it is their decision-making complexity that fit the data better.

XGBoost by Chen and Guestrin (as well as faster version LightGBM by Ke et al.) might be many companies’ favorite algorithm. The performance usually the most robust and outstanding compared to traditional models, and they are easy to train and deploy in multiple environment. Let’s break down some details about approaches to interpret these additive tree models.

Start with an Example

Let’s start with an simple example. We have couple of patients’ claim data from last year and we want to prospectively find out whether they will potentially have vascular disease next year. The dataset is rather straightforward: we have 8 claim codes as variables which are all binary values indicating each patient filed that claim last year. All of these codes are not directly indicating vascular disease in Medicare population based on CMS’ 2019 rules, in this way we actually give machine learning meanings to detect those who might have potential gaps of vascular disease. And we have one column of binary labels indicating the fact whether patients were diagnosed as vascular disease next year. The 8 variables are:

Variable	Description
NDC-000030894	Eliquis Apixaban (treat and prevent blood clots and to prevent stroke)
CPT-93923	Under Non-Invasive Extremity Arterial Studies, upper and lower
CPT-93306	Under Echocardiography Procedures
ICD10-E785	Hyperlipidemia, unspecified
CPT-99305	Initial Nursing Facility Care, per day
CPT-93925	Under Non-Invasive Extremity Arterial Studies, lower
ICD10-I10	Essential (Primary) Hypertension
NDC-504580579	Rivaroxaban, (blood thinners treating and preventing blood clots)

Taking XGBoost as example, a simple model is built under Python 3.7 with XGBoost version as 0.90. Let’s build the model and plot XGBoost’s native feature importance:

import xgboost as xgb
import pandas as pd
import matplotlib.pyplot as plt

# read dataset
data = pd.read_csv('vd_example.csv', header=0)
columns = data.columns
print(columns)

# shuffle dataset
data = data.sample(frac=1).reset_index(drop=True)

# train xgboost model
param = {
    "learning_rate": 0.1,
    "n_estimators ": 500,
    "max_depth": 7,
    "min_child_weight": 1,
    "gamma": 0,
    "importance_type": "gain",
    "n_jobs": -1,
}
model = xgb.XGBClassifier(**param).fit(data[columns[:-1]], data['Vascular_Disease'].values)

# plot feature importance
with plt.style.context("ggplot"):
    plt.figure(figsize=(15, 5))
    plt.bar(range(len(columns[:-1])), model.feature_importances_)
    plt.xticks(range(len(columns[:-1])), columns[:-1], rotation=-45, fontsize=14)
    plt.title('Feature importance', fontsize=14)
    plt.show()

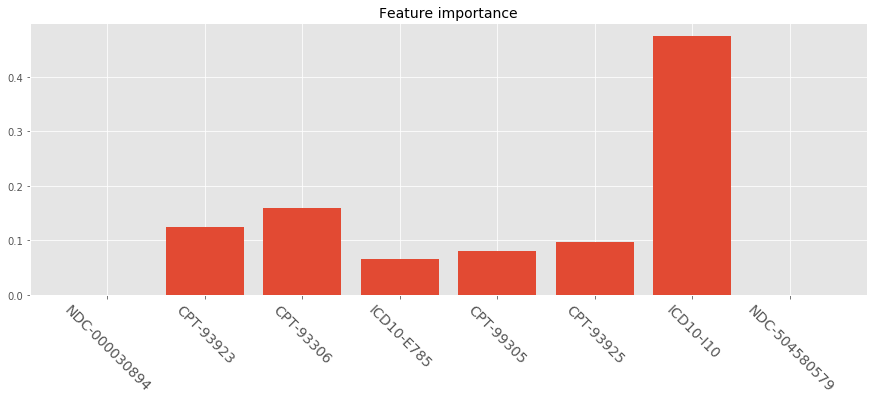

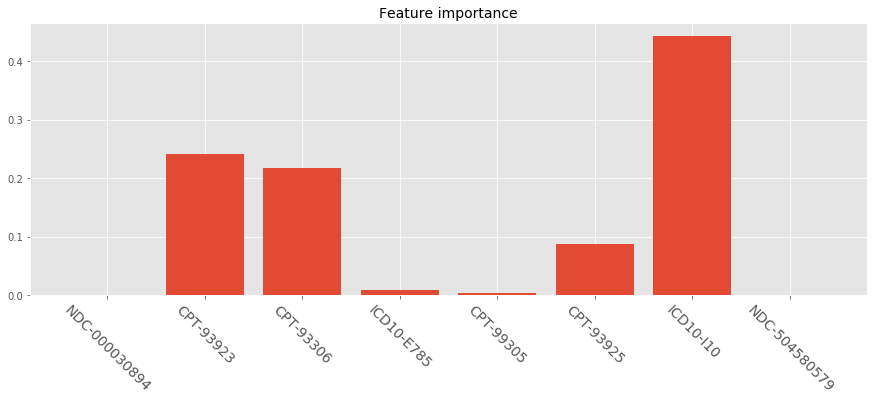

Fig. 1. Feature importance (Gain) in XGBClassifier

Is this plot telling the story? Can we say essential hypertension is the largest contributor to the output? Noticed that in the parameter set I added importance_type as "gain", there are also options of "weight" and "cover". What does that means? Is there any other metrics to interpret the model? Let’s break down.

Feature Importance from “Inside”

All of these 3 metrics are global feature importance built in XGBoost library, which measure the overall contribution of each feature in input $X$ to target variables $y$ based on how we utilize stats in tree-based weak learners.

Weight (Frequency)

Additive tree models are massive ensemble of multiple weak learners, which in general are CARTs (Classification And Regression Trees). The weight (or frequency) measure of XGBoost is the percentage representing the numbers of times each feature occurs in the trees of the model or number of times each feature used for split. In the our example, let’s assume the model only contains 3 trees as followed:

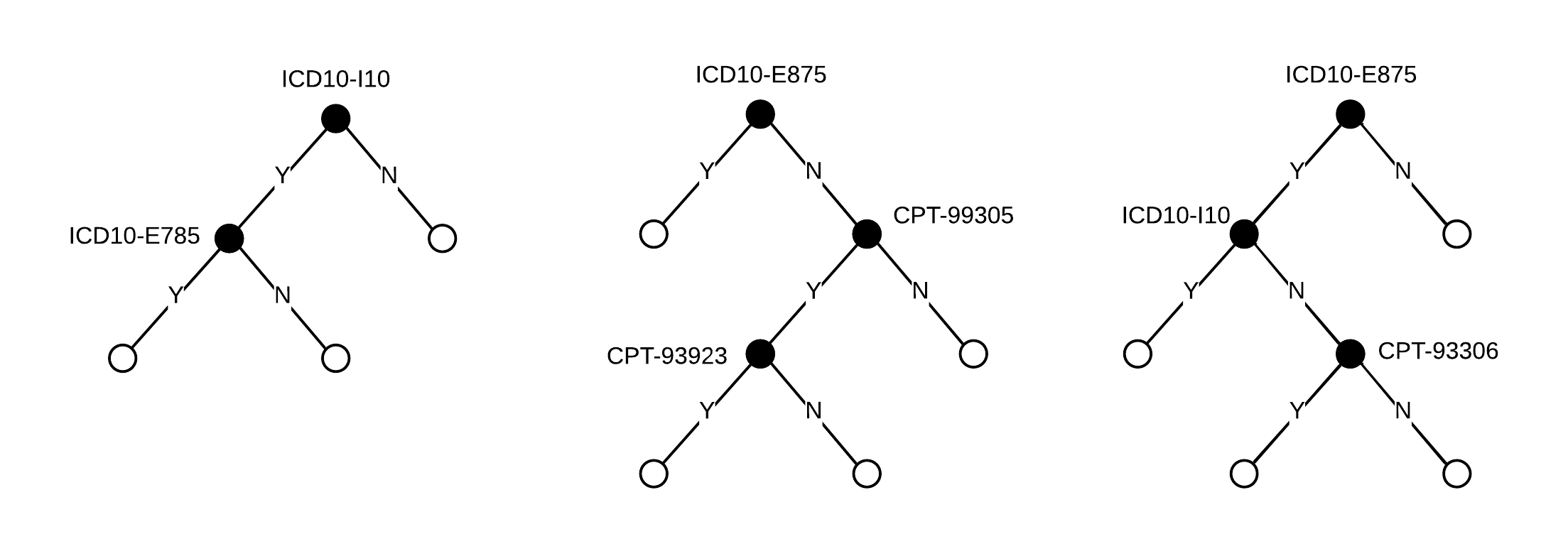

Fig. 2. Sample XGBoost Trees

The weight approach count the total splits for each feature: e.g. ICD10-I10 occurred in 1 split and 1 split in each of tree1 and tree3; then we the weight for ICD10-I10 will be 2. The frequency for ICD10-I10 is calculated as its percentage weight over weights of all features. In this 3-tree example, weights are ICD10-E785: 3 (0.375), ICD10-I10: 2 (0.25), CPT-93923: 1 (0.125), CPT-99305: 1 (0.125) and CPT-99306: 1 (0.125), while all other features got weights of 0.

The downside of weight approach is, the features that get more splits are not necessarily contribute more to the output. Common features might be used for splitting trees a lot, but those splits might not distinguish targets significantly. Another issue with weight approach is not stable from model to model under the same dataset: if you train 2 models on exactly the same dataset, the tree structures are totally different which affects split counts. Let’s see how weight approach perform on our actual dataset:

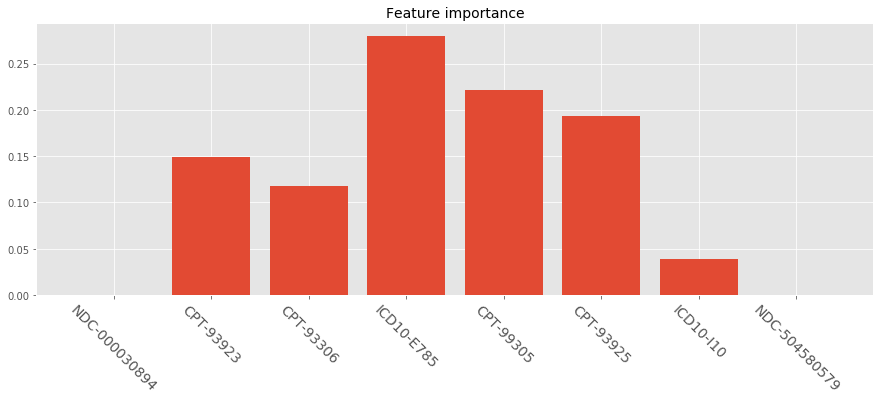

Fig. 3. Feature importance (Weight) in XGBClassifier

Compared to gain above, the contributes from ICD10-E785 significantly increased, probably because it is used for tree split the most, but those splits do not significantly increase model scores: we can interpret it as there are many patients having hyperlipidemia; people with actual vascular disease most likely have hyperlipidemia but people having hyperlipidemia not necessarily encounter vascular disease.

Cover

The cover approach consider contributions from data exemplar perspective. It calculates the relative number of observations (samples) related to this feature. In the above 3-tree example, if we have 1000 training samples in total, and suppose ICD10-E785 is used to decide the leaf node for 439, 842, and 901 observations in tree1, tree2 and tree3 respectively; then the metric will count cover for ICD10-E785 as $439 + 842 + 901 = 2182$ samples. This will be calculated for all the 8 features and the cover will be 2182 expressed as a percentage for all features’ numbers. Similar to weights, cover metric is also very sensitive to training set and how the trees designed, which lead to inconsistent results. Let’s see how cover perform on our example:

Fig. 4. Feature importance (Cover) in XGBClassifier

The distribution is more similar to Gain measurement. We noticed different metrics can be entirely different from one another.

Gain

The gain approach provides a more native way to measure feature contribution. It implies the relative contribution of the corresponding feature to the model calculated by taking each feature’s contribution for each tree in the model during entire training process. A higher value of this metric when compared to another feature implies it is more important for generating a prediction. To understand how to calculate the metrics, we need to start with the principle of additive tree model taking XGBoost as example.

The essence of additive training is adding one tree-based weak learner at a time, and try to learn tree parameters and structure to minimize loss between prediction $\hat{y}$ and ground truth $y$. Let tree as function $f_t(x_i)$ as the function of leaf scores, we have:

\[\begin{align} \hat{y}_i^{(0)} &= 0\\ \hat{y}_i^{(1)} &= f_1(x_i) = \hat{y}_i^{(0)} + f_1(x_i)\\ \hat{y}_i^{(2)} &= f_1(x_i) + f_2(x_i)= \hat{y}_i^{(1)} + f_2(x_i)\\ &\dots\\ \hat{y}_i^{(t)} &= \sum_{k=1}^t f_k(x_i)= \hat{y}_i^{(t-1)} + f_t(x_i) \end{align}\]

Let $l$ as the loss of step $t$, $\Omega$ as L2 regularization and $C$ as any constant value, we have the objective function $\mathcal{L}^{(t)}$ at each step of:

\[\begin{align} \text{min } \mathcal{L}^{(t)} &= \sum_{i=1}^n l(y_i, \hat{y}_i^{(t)}) + \sum_{i=1}^t\Omega(f_i) \\ &= \sum_{i=1}^n l(y_i, \hat{y}_i^{(t-1)} + f_t(x_i)) + \Omega(f_t) + C \end{align}\]

Here comes the beauty of XGBoost is it utilizes Maclaurin Series (or Taylor Expansion when constant point $a=0$) to simplify $\mathcal{L}^{(t)}$: according to Maclaurin Series:

\[F(x) = F(0)+F'(0)x+\frac{F''(0)}{2!}x^2+\frac{F^{(3)}(0)}{3!}x^3+ \dots +\frac{F^{(n)}(0)}{n!}x^n+ \dots\]

where $n$ close to infinite large. At point $ f_t(x_i)=0$ and expand our loss function up to the second order ($n=2$):

\[\begin{align} \text{min } \mathcal{L}^{(t)} &\approx \sum_{i=1}^n [ l(y_i, \hat{y}_i^{(t-1)}) + \frac{\mathcal{L^{(1)}}^{(t)} f_t(x_i)}{1!} + \frac{\mathcal{L^{(2)}}^{(t)} f_t^2(x_i)}{2!} ]+ \Omega(f_t) + C\\ &= \sum_{i=1}^n [ l(y_i, \hat{y}_i^{(t-1)}) + g_i f_t(x_i) + \frac{1}{2}h_i f_t^2(x_i) ]+ \Omega(f_t) + C \end{align}\]

where $g_i$ and $h_i$ are:

\[\begin{align} g_i &= \partial_{\hat{y}_i^{(t-1)}} l(y_i, \hat{y}_i^{(t-1)})\\ h_i &= \partial_{\hat{y}_i^{(t-1)}}^2 l(y_i, \hat{y}_i^{(t-1)}) \end{align}\]

after removing all constants, we got final loss function $\mathcal{L’}^{(t)}$ as:

\[\text{min } \mathcal{L'}^{(t)} = \sum_{i=1}^n [g_i f_t(x_i) + \frac{1}{2} h_i f_t^2(x_i)] + \Omega(f_t)\]

Now the objective function is totally dependent on the partial derivative from the last step instead of the form of loss function design, which enables users to custom any loss functions (cross entropy, mean square error etc.) The reason we expand function up to second order is to coordinate with regularization term. Let $w$ as the vector of leaf values of tree $f_t(x)$ and $T$ as the number of leaves, the L2 regularization would be:

\[\Omega(f) = \gamma T + \frac{1}{2}\lambda \sum_{j=1}^T w_j^2\]

where $\gamma$ is the user defined factor of punishing feature size. In this form, we can convert final loss function $\mathcal{L’}^{(t)}$ as:

\[\begin{align} \text{min } \mathcal{L'}^{(t)} &= \sum_{i=1}^n [g_i w_{x_i} + \frac{1}{2} h_i w^2_{x_i}] + \gamma T + \frac{1}{2}\lambda \sum_{j=1}^T w_j^2\\ &= \sum^T_{j=1} [(\sum_{i\in I_j} g_i) w_j + \frac{1}{2} (\sum_{i\in I_j} h_i + \lambda) w_j^2 ] + \gamma T \end{align}\]

where $I_j$ is the set of indices of data samples assigned to the $j$-th leaf. Since all data samples on the same leaf share the same score, we can simplify the function by letting $G_j = \sum_{i\in I_j} g_i$ and $H_j = \sum_{i\in I_j} h_i$:

\[\text{min } \mathcal{L'}^{(t)} = \sum^T_{j=1} [G_j w_j + \frac{1}{2} (H_j + \lambda) w_j^2 ] + \gamma T\]

Now the loss function has been compressed to a perfect quadratic form (well-engineered!), hereby given a specific tree structure, we can easily calculate optimal $w^*_j$ as when:

\[\begin{align} \mathcal{L'^{(1)}}^{(t)} &= \sum^T_{j=1} [G_j + (H_j + \lambda) w^*_j ] = 0\\ w_j^\ast &= -\frac{G_j}{H_j+\lambda}\\ \mathcal{L'}^{(t)*} &= -\frac{1}{2} \sum_{j=1}^T \frac{G_j^2}{H_j+\lambda} + \gamma T \end{align}\]

Taking the tree1 from above as an example, suppose the tree split the 1000-sample dataset as:

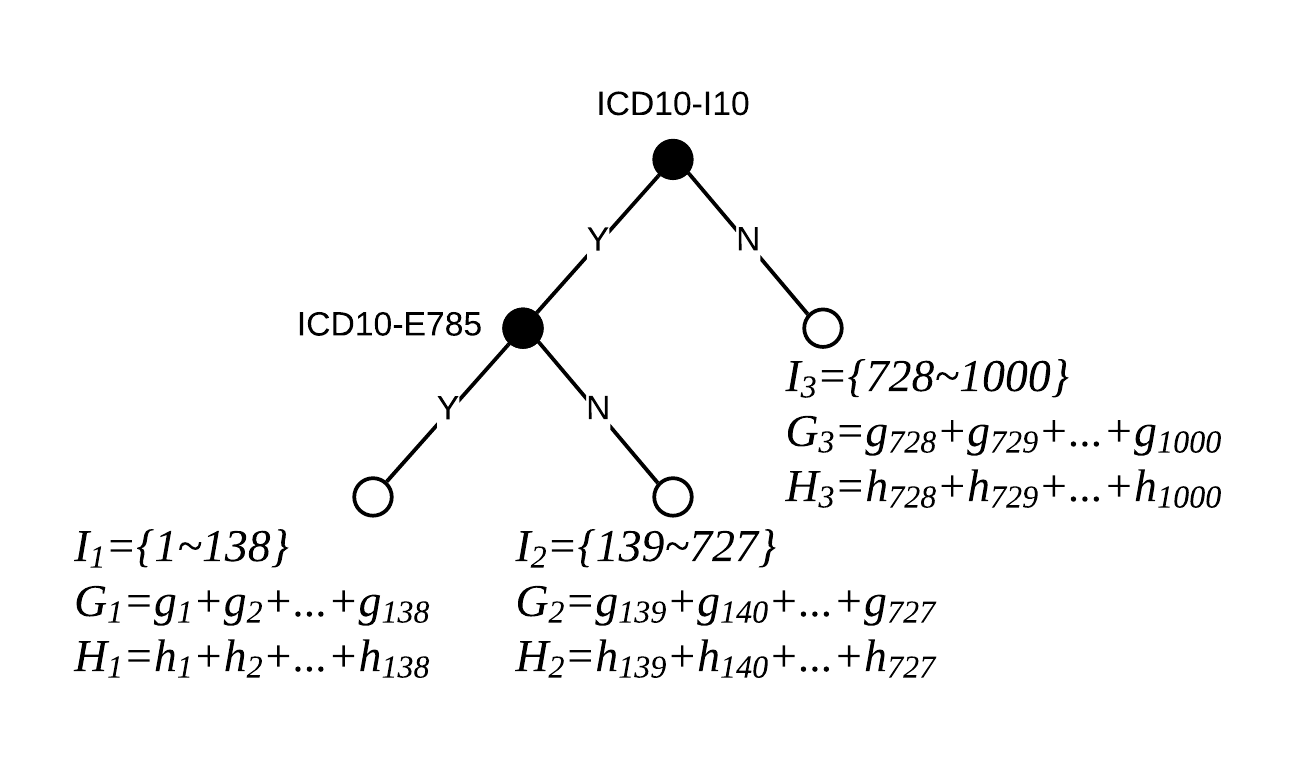

Fig. 5. How to measure score of a tree structure.

Given this tree, the optimal loss would be: $ \mathcal{L’}^* = - \sum_j \frac{G_j^2}{H_j+\lambda} + 3\gamma $

After all these XGBoost proposes a very fast, easy way to find the best leaf scores given a tree structure, but the other important part of each step is find the best structure, here comes the concept of “gain”. Given the above approach, additive tree models find the best tree structure by enumerating all splits one level at a time, rather than enumerating all possible trees due to intensive computing in practice. On each tree level, we compare the loss after best split of each features and the original loss, i.e. define gain as the subtraction of:

\[\text{Gain} = \frac{1}{2} \left[ \frac{G_L^2}{H_L+\lambda}+\frac{G_R^2}{H_R+\lambda}-\frac{(G_L+G_R)^2}{H_L+H_R+\lambda} \right] - \gamma\]

where $L$ and $R$ notation represent the corresponding values of left and right leafs if we perform this split. If after splitting the $\text{Gain}$ is negative or 0, we simply abandon this trial, otherwise we accept the split. This approach mimics the pruning mechanism in CART. Note that this is the other reason why XGBoost and other modern algorithm much efficient than traditional boosting: such enumerating process can be paralleled with multi-core CPU or GPU accelerating or even scalable distributed computing.

Finally back to Figure 1., the final gain value for each feature is the sum-up of all gains per split of that feature. Compared to previous two measures, the gain approach measures the feature contributions closer to training process and loss reduction instead of being pre-defined and arbitrary metrics. However, gain still cannot solve several problems in terms of model interpretation:

• Polarity: it cannot reveal the polarity of feature contribution: all the feature importance value are shown as percentages over all values (positive values), we cannot distinguish those features contribute negatively to targets.
• Interactive effects: all values are independently appear as individual feature contributions, it cannot tell us how multiple features interactively affects model. Moreover, if there are two features highly correlated, the final feature importance scores might be weaken by each other.
• Individual level interpretation: now we can only view the overall feature importance globally, but it might differs a lot in terms of individual level. If we train a model to predict whether a person has flu, although globally “fever” has higher score than “sneeze”, but we might notice model still predict a high probability to a person who doesn’t have fever but sneeze, which means individually sneeze is a strong indicator of flu as well.
• Consistency: gain measure still cannot ensure the consistency of interpretation. A simple example would be if we compare the following two trees, they are identical logically and deliver the same output.
  • But if we calculate the gains for tree1: $\text{Gain}_{I10} = \frac{1}{2} \left[ \frac{(G_1+G_2)^2}{H_1+H_2+\lambda}+\frac{(G_3+G_4)^2}{H_3+H_4+\lambda}-\frac{\sum_i G_i}{\sum_i H_i + \lambda} \right] - \gamma$
  • while $\text{Gain}_{E785} = \frac{1}{2} \left[ \frac{G_1^2}{H_1+\lambda}+\frac{G_2^2}{H_2+\lambda}-\frac{(G_1+G_2)^2}{H_1+H_2+\lambda} + \frac{G_3^2}{H_3+\lambda}+\frac{G_4^2}{H_4+\lambda}-\frac{(G_3+G_4)^2}{H_3+H_4+\lambda} \right] - 2\gamma$
  • Now if we get gain for tree2: $\text{Gain}_{I10} = \frac{1}{2} \left[ \frac{G_1^2}{H_1+\lambda}+\frac{G_3^2}{H_3+\lambda}-\frac{(G_1+G_3)^2}{H_1+H_3+\lambda} + \frac{G_2^2}{H_2+\lambda}+\frac{G_4^2}{H_4+\lambda}-\frac{(G_2+G_4)^2}{H_2+H_4+\lambda} \right] - 2\gamma$
  • while $\text{Gain}_{E785} = \frac{1}{2} \left[ \frac{(G_1+G_3)^2}{H_1+H_3+\lambda}+\frac{(G_2+G_4)^2}{H_2+H_4+\lambda}-\frac{\sum_i G_i}{\sum_i H_i + \lambda} \right] - \gamma$.

  The gain values for the same feature from two trees are totally different from each other. As we discuss above, XGBoost learns the tree structure by enumerating feature level by level in a random order, therefore we cannot ensure the tree structures nor gain values to be consistent even if two model deliver the similar results.

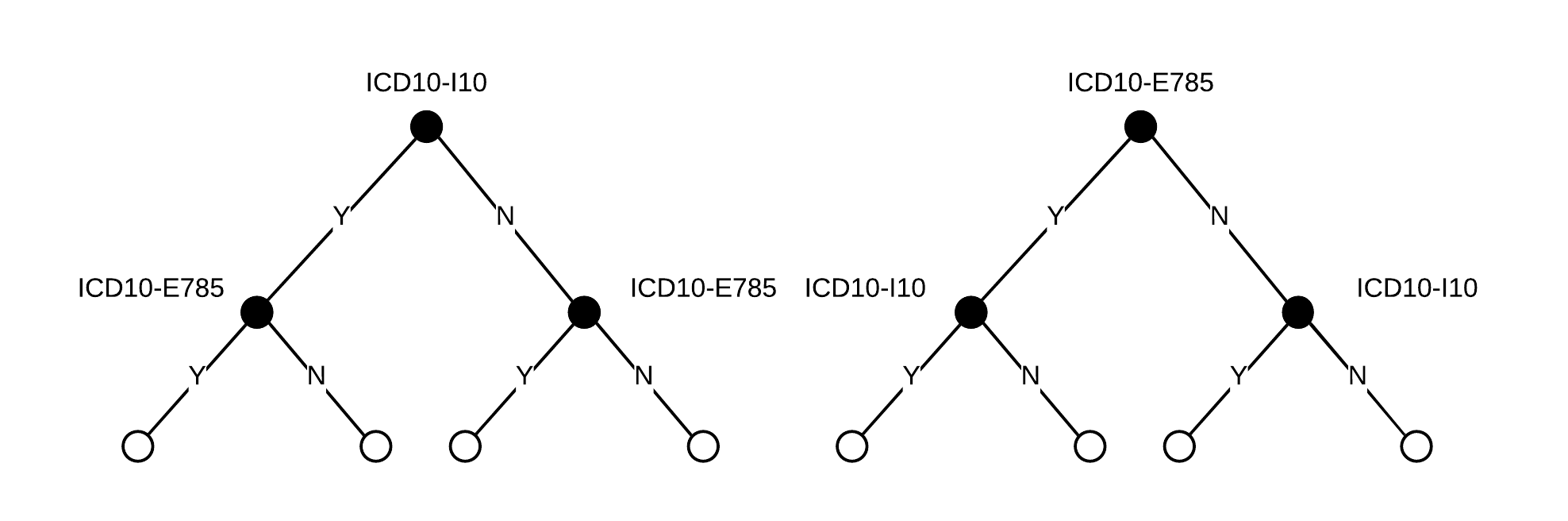

Fig. 6. Gain metric inconsistency from comparison of two trees.

Feature Importance from “Outside”

There approaches categorized as “model-agnostic interpretation” which interpret model from another perspective by treating the predictive model as a black box. In other words, the following approaches are not specifically designed for additive tree models but ideally for all machine learning model at any complexity levels.

Permutation Importance

Permutation feature importance was introduced by Breiman (2001) for random forest which measures the increase in the prediction error of the model after we “mess up” (permuted) the feature values, which breaks the relationship between the feature and the true outcome. The concept recognize a feature is “important” if shuffling its values increases the model error a lot; while feature is “unimportant” if shuffling its values leaves the model error barely unchanged, i.e. the model ignored the feature for the prediction. Based on this idea, Fisher et al. (2018) proposed “model reliance”, a model-agnostic version of the feature importance. They also introduced more advanced ideas about feature importance, for example a (model-specific) version that takes into account that many prediction models may predict the data well. Here’s briefly how we calculate permutation feature importance:

• Let the original model error $\xi=\mathcal{L}(y,f(X))$ where $f(X)$ is the trained model
• For each feature $j \in {1,2,\dots,k}$ where $k$ is the total number of feaures, generate feature matrix $X^p_j$ bu permuting feature $j$ in matrix $X$ which breaks the association between feature J and target $y$.
• Estimate error $\xi^p=\mathcal{L}(y,f(X^p_j))$ can define feature importance for j as $s_j=\xi^p/\xi$ or $s_j=\xi^p-\xi$

Let try it on our example with Python library eli5:

from eli5.sklearn import PermutationImportance

perm = PermutationImportance(model, random_state=1).fit(
    data[columns[:-1]],
    data['Vascular_Disease'].values
)

# plot feature importance
with plt.style.context("ggplot"):
    plt.figure(figsize=(15, 5))
    plt.bar(range(len(columns[:-1])), perm.feature_importances_)
    plt.xticks(range(len(columns[:-1])), columns[:-1], rotation=-45, fontsize=14)
    plt.title('Permutation Feature importance', fontsize=14)
    plt.show()

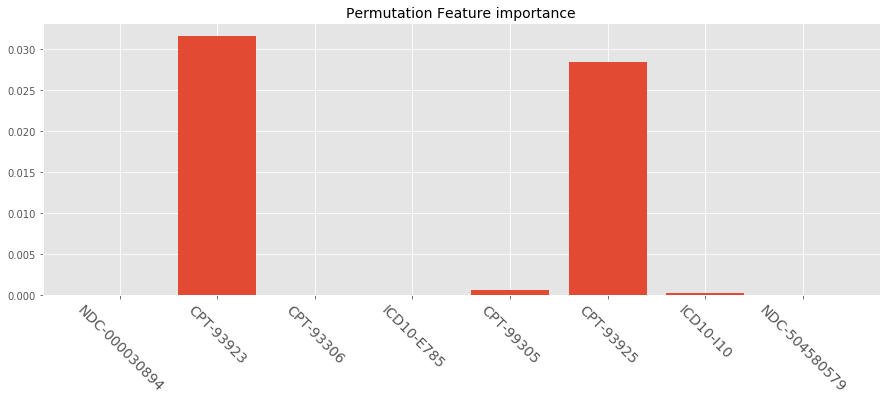

Fig. 7. Permutation feature importance in XGBClassifier

The results are dramatically different than what we saw before: it give significantly higher scores to CPT-93923 and CPT-93925 than others (noted that these two variables are very correlated). Is it reliable? There are actually couple of drawbacks in permutation feature importance:

• Training vs test data: since permutation feature importance is linked to the error of the model, sometimes it’s not what you need. Specially in training/test data splits, if the model overfits, permutation importance calculated on training set and test data would be different.
• Consistency: when the permutation is repeated multiple times on one feature, the results might vary greatly. Of course repeating the permutation and averaging the importance measures over repetitions stabilizes the measure, but increases the time of computation.
• Correlation bias: permutation of features produces unreal data instances when two or more features are correlated. When they are positively correlated (like CPT-93923 and CPT-93925 in our example) and it shuffles one of the features, it create new instances that are unlikely or even physically impossible (e.g. a male who is pregnant), yet it use these new instances to measure the importance.

LIME

LIME, short for Local Interpretable Model-agnostic Explanations (Ribeiro et al., 2016) is a very interesting and intuitive idea in which the authors propose an implementation of local surrogate models trained additionally to approximate the predictions of the underlying black box model. It aims to explain predictions of any model in an interpretable and faithful manner to human by learning an local model around the prediction. Theoretically, the surrogate model should present:

• Interpretability: it is supposed to provide qualitative insights between the input to the target for non-technical folks to easily understand.
• Local fidelity: as a trade-off to interpretability: e.g. a too simplified surrogate model might be easy to understand but it won’t be relevant to the original model anymore. It should be at least locally faithful and replicate original model’s behavior closely to instance being predicted.
• Model agnostic: as we discuss as the beginning of this chapter, it explains the model from outside perspective by treating it as a black box $f(x)$. The approach should ideally work out for models with any complexity.
• Global perspective: it should provide global interpretation beside local surrogate models bu building selecting a set of explanations to present human as the representative of the original model.

The LIME explanation formula is defined as:

\[\xi(x) = \underset{g \in G}{\mathrm{argmin}}\text{ }\mathcal{L}(f,g,\pi_x)+\Omega(g)\]

where

• $f$ is the original model;
• $g$ is an interpretable model to approximate $f$. Here to be specific, “interpretable” means a simple model with high interpretability like linear model (by looking at coefficient weights) or decision tree (by looking at split logics);
• $\pi_x$ is a vector of weights to aggregate all interpretable models $g$;
• $\Omega(g)$ is the complexity of $g$, it can be number of weights if $g$ is a linear model, or depth of tree if $g$ is a decision tree.

Let’s see how to operate it specifically. LIME propose to decide which feature has more contribution to the output by perturbing the input instance, or randomly sampling instance features’ presence or absence. The intuition of perturbing is that it’s understandable by human. For example, in tabular data, how does the model perform after removing some features, or in image data, how does the model perform after covering some part of the image, or in text data, how does the model perform after removing some words. Let $x’$ as the binary vector of human understandable version of the actual features used by original model representing the presence/absence of each feature, while a set of $z’ \in {0,1}^{d’}$ as the corresponding perturbed instance uniformly sample from $x’$ (nonzero fraction elements of $x’$). We use these new set $Z$ to probe the original model as black box as often as we want and try to train an interpretable model $g$. Let’s take Spare Linear Explanation from the paper as example:

Let’s assume $g(z’)=w \cdot z’$ as a linear model, usually we use Lasso (I’ll explain later why). We will try to minimize $\mathcal{L}(f,g,\pi_x)$ using square loss:

\[\mathcal{L}(f,g,\pi_x) = \underset{z,z' \in Z}{\sum} \pi_x(z) \left( f(z)-g(z')^2 \right)\]

where $\pi_x(z)=\exp(-\frac{D(x,z)^2}{\sigma^2})$ as an exponential kernel. Remember $\pi_x$ should be representing the proximity between original model $f$ and surrogate model $g$ to weight all trials under $z’$, so we use $D(x,z)$ to be some distance function like Euclidean distance or cosine distance with width $\sigma$. We also set a constant number $K$ to limit the number of features to use: noticed $\Omega(g)$ disappears from the objective function, the reason is we hope to use $\Omega(g)$ penalty to make $g$ as simple as possible, here we can simply use K-Lasso to do that. In Lasso we can simply tune $\lambda$ to set some weights to exact 0 (compared to Ridge is able to drive weights near 0 but always non-zero, you can find mathematical explanation in details here), hereby we can achieve constant K-feature model for each $g$. At last, with the around-sampled $z’$ which leads to the minimal loss, we retrieve weight $w^* $ from the corresponding optimal $g^* $.

Let’s try an example:

import lime
import lime.lime_tabular
import numpy as np

# Key parameters explained
# training_data: as the binary vectors - x'
# mode: model type, here is "classification"
# training_labels: groud truth y
# kernel_width: sigma of in pi distance weight, defaults to sqrt (number of columns) * 0.75
# feature_selection: feature selection method, can be "forward_selection", "lasso_path", "none" or "auto".
# discretizer='quartile'

explainer = lime.lime_tabular.LimeTabularExplainer(
    training_data =data[columns[:-1]].astype(int).values,
    mode='classification',
    training_labels=data['Vascular_Disease'].values,
    feature_names=columns[:-1],
    feature_selection='lasso_path',
)

def prob(x):
    if len(x.shape) == 1:
        df_x = pd.DataFrame(np.reshape(x, [1, -1]), columns=columns[:-1])
    else:
        df_x = pd.DataFrame(x, columns=columns[:-1])
    return model.predict_proba(df_x)

# asking for explanation for LIME model
# data_row: 1d numpy array as an instance
# predict_fn: prediction function returning probabilities of each class
# num_features: maximum number of features: K
# num_samples: size of the neighborhood to learn the linear model: number of z'
# distance_metric: the distance metric in pi, default to be "euclidean"

sample_instance = np.array([0, 1, 1, 1, 0, 0, 1, 1])
exp = explainer.explain_instance(
    data_row=sample_instance,
    predict_fn=prob,
    num_features=8,
    num_samples=5000,
)
exp.show_in_notebook(show_predicted_value=True, show_table=True)

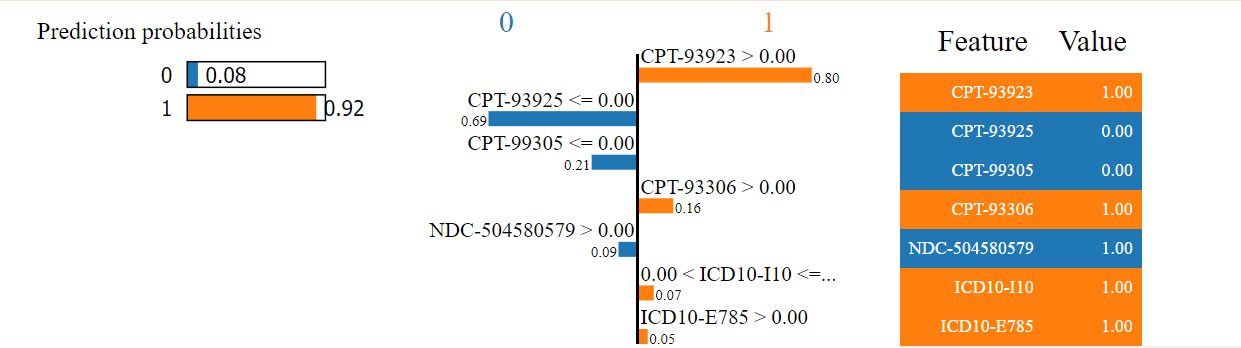

Fig. 8. LIME Local Explainer for XGBClassifier

There are three parts to the explanation:

1. Left part gives the prediction probabilities for class 0 and class 1.
2. Middle part gives the most important features. As it is an example of binary class we are looking at 2 colors. Attributes having orange color support the class 1 and those with color blue support class 0. CPT-93925 <= 0 means when this feature’s value satisfy this criteria it support class 0. Float point number on the horizontal bars represent the relative importance of these features.
3. Right part follows the same color coding as 1 and 2. It contains the actual values of for the top variables.

LIME has been a popular approach to interpret complex model, more often in deep learning studies, due to it’s unique idea “thing out of the box”. But it has some major limitations as well:

• Explainer parameter tunning： the correct definition of the “neighborhood” is broad when using LIME with tabular data. For each application you have to try different kernel settings and see for yourself if the explanations actually make sense.
• Under-engineered implementation: as the authors mentioned as well, a lot of works needed for further improvement. For example, sampling could be improved in the current implementation of LIME. Data points are sampled from a Gaussian distribution, ignoring the correlation between features, which leads to unrealistic data points as we discussed in permutation approach. Algorithm optimization is needed as well since it requires a lot of computing resources to explain every instance.
• Consistency: again it’s a big problem. Alvarez-Melis et al. showed that the explanations of two very similar instances varied greatly in a simulated setting. Also, if you repeat the sampling process, then the explanations that come out can be different especially working with high-dimensional dataset.

SHAP: Interpretable Additive Approach

SHAP (SHapley Additive exPlanations) by Lundberg and Lee (2017) is a method to explain additive tree model predictions both individually and globally. The goal of SHAP is to explain the prediction of an instance $x$ by computing the contribution of each feature to the prediction, measured by Shapley values from coalitional game theory.

Shapley Values

The Shapley value is a solution concept in coalitional game theory, which is named in honor of Lloyd Shapley, 1953. To each cooperative game the approach assigns a unique contribution (among the players) of a total surplus generated by the coalition of all players. Let’s say we have an investor and an engineer, who can earn 3000 dollars on a project if they work together. The two of them are the essence of the project, i.e. the project won’t continue if any of them is absence. Upon that, if they hire a worker they can earn 3000 dollars more, and if they hire one more worker, they would get additional 3000 dollars. If they hire a third worker they won’t make any more profit. Question is together they can make 9000 bucks all together, how to fairly distribute the profit to each one of them?

Before we dig into Shapley value, we have to make 3 fairness assumption:

1. The profit is not relevant to player title but only to contributions;
2. All profit belongs to players;
3. If one player participate multiple tasks, the player should earn multiple shares based on contribution.

The coalitional game is defined as: the player group is a set N (of 4 players) and a function $v$ that maps subsets of players to the real numbers $\mathbb {R}$ representing the present value a subset, with $v(\emptyset )=0$, where $\emptyset$ denotes the empty set. The function $v$ is called a characteristic function.

The function $v$ has the following meaning: if $S$ is a coalition of players, then $v(S)$, called the worth of coalition $S$, describes the total expected sum of payoffs the members of $S$ can obtain by cooperation. According to the Shapley value, the amount that player i gets given in a coalitional game $(v,N)$ is:

\[\phi_j(v)=\sum_{S\subseteq N\setminus\{x_j\}}\frac{|S|!\left(|N|-|S|-1\right)!}{|N|!}\left(v\left(S\cup\{x_j\}\right)-v(S)\right)\]

where $N={x_1, x_2, \dots x_n}$ is the total number of players and the sum extends over all subsets $S$ of $N$ not containing player $x_j$. The formula can be interpreted as follows: imagine the coalition being formed one player at a time, with each player demanding their contribution $v(S \cup {x_j}) − v(S)$ as a fair compensation, and then for each player take the average of this contribution over the possible different permutations in which the coalition can be formed. We can consider the weights $\frac{\vert S\vert!\left(\vert N \vert-\vert S\vert-1\right)!}{\vert N\vert!}$ this way:

• Numerator: $\vert N\vert$ player permutations have $\vert N\vert!$ conditions.
• Denominator: after subset $S$ is fixed, the player set is ${x_1, \dots, x_{\vert S\vert}, x_j, x_{\vert S\vert+2}, \dots, x_n}$; subset $S={x_1, \dots, x_{\vert S\vert}}$ permutations have $\vert S\vert!$ conditions, followed by player $x_j$ with remaining player set ${x_{\vert S\vert+2}, \dots, x_n}$ permutations having $(\vert N\vert-\vert S\vert-1)!$ conidtion. So the total conditions would be $\vert S\vert!\left(\vert N\vert-\vert S\vert-1\right)!$.

Please check the original paper if you’re interested in formula derivation. It can be also interpreted as:

\[\phi_j(v)=\frac{1}{\text{number of players}}\sum_{\text{coalitions excluding }x_j}\frac{\text{marginal contribution of }x_j\text{ to coalition}}{\text{number of coalitions excluding }x_j\text{ of this size}}\]

Back to our little example, say we want to calculate the earnings of the investor, we consider all possible conditions of when the investor join the group and calculate the expected marginal gain. The permutation of the 4 players should be 4!=24 conditions. Let’s encode the investor as 1, the engineer as 2, worker A as 3, worker B as 4. If the investor is the first guy in the group, the project won’t kick off; if the investor join the group of worker A and engineer, the marginal gain is $6000. So all possible sets are:

(1,2,3,4) > 0; (1,2,4,3) > 0; (1,3,2,4) > 0; (1,3,4,2) > 0; (1,4,2,3) > 0; (1,4,3,2) > 0;

(2,1,3,4) > 3000; (2,1,4,3) > 3000; (2,3,1,4) > 6000; (2,3,4,1) > 9000; (2,4,1,3) > 6000; (2,4,3,1) > 9000;

(3,1,2,4) > 0; (3,1,4,2) > 0; (3,2,1,4) > 6000; (3,2,4,1) > 9000; (3,4,1,2) > 0; (3,4,2,1) > 9000;

(4,1,2,3) > 0; (4,1,3,2) > 0; (4,2,1,3) > 6000; (4,2,3,1) > 9000; (4,3,1,2) > 0; (4,3,2,1) > 9000

Hereby sum up all conditions, the earning of the investor is 84000 / 24 = 3500 dollars as the Shapley value of the investor.

The Shapley value is able to satisfy several properties that ensures “fairness” of the contribution assignment:

• Symmetry: the contributions of two player $j$ and $k$ are the same if they contribute equally to all coalitions, i.e. if $v(S\cup{x_j})=v(S\cup{x_k})$ for all $S\subseteq{x_1,\ldots,x_n}\setminus{x_j,x_k}$ then $\phi_j=\phi_k$.
• Dummy: a player $j$ that does not change the margin value, regardless of which coalition it is added at, should have a Shapley value of 0, i.e. if $v(S\cup{x_j})=v(S)$ for all $S \subseteq {x_1 \dots x_n}$ than $\phi_j=0$.
• Additivity: for a game with combined contributions, the Shapley values are simply $\phi_j+\phi_j^+$.

From Shapley Value to SHAP (Shapley Additive Explanations)

SHAP in my opinion is a clever combination of LIME and Shapley values. First of all, SHAP establishes an linear form interpretable model:

\[g(z')=\phi_0+\sum_{j=1}^N \phi_j z'_j\]

where $z’ \in {0,1}^N$ is the coalition vector representing the presence/absence of the features and N is number of features. Such explanation model uses a simplified input $x’$ that map to the original input with a mapping function $x=h_x(x’)$. The local surrogate model try to ensure $g(z’) \approx f(h_x(z’))$ whenever $z’ \approx x’$. For example, in text data $h_x(x’)$ converts a vector of 1s and 0s into the original bag of words; in image data $h_x(x’)$ treats the images as a set of super pixels: it maps 1 to leaving the supper pixel as is original value and 0 to replacing the super pixel with an average of neighboring pixels. Here in the article we only discuss SHAP’s application on additive tree models which only takes structured tabular data, hereby for instance $x$, $z’$ should be a vector of all 1s (all features can be observed). The formula can be simplified then as:

\[g(x')=\phi_0+\sum_{j=1}^N \phi_j\]

Note that there are a lot of applications of SHAP including TreeExplainer, DeepExplainer, GradientExplainer and KernelExplainer for both machine learning models and deep learning models. Here we only discuss TreeExplainer, I might draft another post about SHAP’s application on deep learning models.

Now if we treat all features as players in a coalition game, the concept of Shapley value can be applied in our interpretations by calculating $\phi_j(v)$. Question is how do we define $v$? The classic Shapley value estimation of machine learning model features is:

\[\phi_j=\sum_{S\subseteq N\setminus\{x_j\}}\frac{|S|!\left(|N|-|S|-1\right)!}{|N|!}\left(f_{S\cup\{x_j\}}\left(S\cup\{x_j\}\right)-f_S(S)\right)\]

where $f_S(S)$ is the predicted value from original model based on a feature set $S$. And we let $\phi_\emptyset=f_\emptyset(\emptyset)$, then the expression match the equation of $g(x’)$ and are hence an additive feature attribution method.

To match the $g(x’)$ equation, SHAP proposed another approach as SHAP value, where it defines $f_x(S)=E[f(x)\vert x_S]$ where $S$ is the set of nonzero indexes in x’, and the $E[f(x)\vert x_S]$ is the expected value of the function conditioned on a subset $S$ of the input features. Taking one subset $S$ as example:

Fig. 9. SHAP Value Explained in One Subset $S$, image source.

It explain the output of a function $f$ as a sum of the effects $\phi_j$ of each feature being introduced in to a conditional expectation. Importantly, for non-linear models like additive tree models the order in which features are introduced matters. SHAP values results from averaging over all possible ordering. Proofs from coalitional game theory show this is the only possible consistent approach where $\sum_{j=0}^N\phi_j=f(x)$. We can explain above images as:

• Once the subset $S$ is fixed, we start with empty set where $\phi_0=f_x(\emptyset)=E[f(x)]$, where $E[f(x)]$ is the expectation value of model prediction, i.e. the average value of model prediction on the training set;
• Then according to the order of $S$ we add feature $x_1$, here $\phi_1=f_x({x_1})-f_x(\emptyset)=E[f(x)\vert x_1]-E[f(x)]$, which means expectation value of model prediction when adding $x_1$ - expectation value of model prediction;
• Then according to the order of $S$ we add feature $x_2$, here $\phi_2=f_x({x_1,x_2})-f_x(\emptyset)=E[f(x)\vert x_1,x_2]-E[f(x)]$, which means expectation value of model prediction with both $x_1$ and $x_2$ - expectation value of model prediction with $x_1$;
• …
• Until the last feature $x_4$ the final expectation value of model prediction with all $x_1, x_2, x_3, x_4$ is actually the predicted value of this instance.

Here the SHAP value satisfy the properties of Shapley values as we mentioned above, it also presents 3 ideal properties:

• Local accuracy: for each instance, the output of the model equals to the sum of feature contribution: $f(x)=g(x’)=\phi_0+\sum_{j=1}^M\phi_jx_j’$. Note that in library shap the implementation can be a little bit different. SHAP value has already been encapsulated into xgboost and lightgbm library API, which are calculated respectively by get_booster() and booster_ calculating contributions from prediction value (e.g. in XGBoost, you can use model.get_booster().predict(d_matrix, pred_contribs=True) to get a matrix where last column as prodiction and all other columns as SHAP values). However the sum of these contributions equals to the logarithm of the odd score $\ln\frac{y}{1-y}$ of the model prediction. Thesefore shap is able to immediately get SHAP value from xgboost and lightgbm models but take longer time for GBDT and random forest in scikit-learn.
• Missingness: means $x_j’=0\rightarrow\phi_j=0$. When the feature is missing, the contribution would be 0. It does not means a certain feature is 0 or NaN, but the feature is not observed.
• Consistency: Let $f_x(z’)=f(h_x(z’))$ and $z’\setminus j$ indicate that $z’_j=0$ (feature $j$ is absent). For any two models $f$ and $f’$ that satisfy: $f_x’(z’)-f_x’(z\setminus{}j’) \geq f_x(z’)-f_x(z\setminus{}j’)$ for all inputs $z’\in{0,1}^N$, then $\phi_j(f’,x)\geq\phi_j(f,x)$. The consistency property says that if a model changes so that the marginal contribution of a feature value increases or stays the same (regardless of other features).

The authors further proposed TreeExplainer for fast implementation of SHAP values specifically for tree-based models, which exponentially reduces complexity from $O(TL2^N)$ to $O(TLD^2)$, where $T$ is number of trees, $L$ is the largest number of leaves among all trees, $N$ is the number of features and $D$ is the depth of trees. If you’re interested read the original paper.

Explain XGBoost Model with SHAP and Visualizations

Enough of math and talks, let’s do some coding. We directly get SHAP values for entire dataset through shap.TreeExplainer:

import shap

explainer = shap.TreeExplainer(model)
shap_values = explainer.shap_values(data[columns[:-1]])
print(shap_values.shape)

(189989, 8)

Local Explainer

Let’s pick one patient to see the contributions of features to the output:

i = 64
data['pred'] = model.predict_proba(data[columns[:-1]])[:, 1]
player_explainer = pd.DataFrame()
player_explainer['feature'] = columns[:-1]
player_explainer['feature_value'] = data[columns[:-1]].iloc[i].values
player_explainer['shap_value'] = shap_values[i]
player_explainer

feature	feature_value	shap_value
NDC-000030894	0	0.000000
CPT-93923	0	-0.157628
CPT-93306	1	1.493827
ICD10-E785	1	0.365614
CPT-99305	0	-0.023559
CPT-93925	0	-0.112551
ICD10-I10	1	0.575734
NDC-504580579	0	0.000000

Let’s vefify:

y_pred_shap = y_base + player_explainer['shap_value'].sum()
print('y_base + sum_of_shap_values: %.2f' % (y_pred_shap))

y_pred = data['pred'].iloc[i]
print('y_pred: %.2f'%(y_pred))

y_base + sum_of_shap_values: -0.58
y_pred: 0.36

You might say wait a minute, these two number is totally different. Remenber as we mention above the XGBoost SHAP values is converted by the logarithm of the odd score, so if we do this:

from scipy.special import expit # sigmoid function

print('y_base + sum_of_shap_values inverted from the logarithm of the odd score: %.2f' % (expit(y_pred_shap)))

y_base + sum_of_shap_values inverted from the logarithm of the odd score: 0.36

SHAP also provide powerful visualization tools:

shap.initjs()
shap.force_plot(
    explainer.expected_value,
    shap_values[i],
    data[columns[:-1]].iloc[i],
    link='logit' # show SHAP value as probability instead of raw values.
)

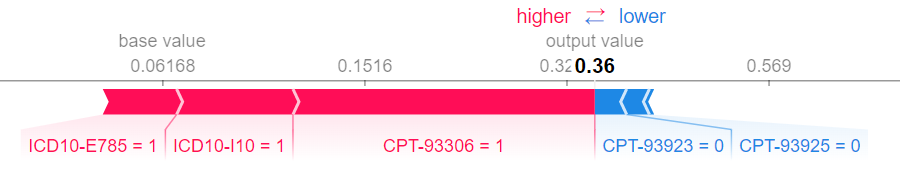

Fig. 10. SHAP Force Plot.

Blue bars mean the feature contribute negatively while red bars mean positive effects. The longest red bar is CPT-93306, the patient is under Echocardiography procedures which increase his probability of vascular disease by about 0.2. The longest blue bar is CPT-93923, which shows the patient is missing extremity arterial procedures which reduce the probability by about 0.05.

Global Explainer

SHAP is also able to visualize the global feature contributions.

shap.summary_plot(shap_values, data[columns[:-1]])

Fig. 11. SHAP Summary Plot.

In this plot, each row is one feature, x-axis is the SHAP value. Each dot is one instance, red means the value of feature is large and blue mean small. Of course in our example values can be only 1 and 0, so you won’t see purple here. You can try some example with numeric values.

We can see the CPT-93923 and CPT-93925 (extremity arterial procedures) are both vital important feature: they are basically positively related to vascular disease, which means most people who received such procedures are generally having vacular disease gap. ICD10-I10 (essential hypertension) is also an important feauture: patient with hypertension possibly having risk of vascular disease while on the other hand, all negative SHAP values are blue dots which means patients without hypertension are free from vascular disease.

We can also plot the average value of absolute SHAP values as global contribution:

shap.summary_plot(shap_values, data[columns[:-1]], plot_type="bar")

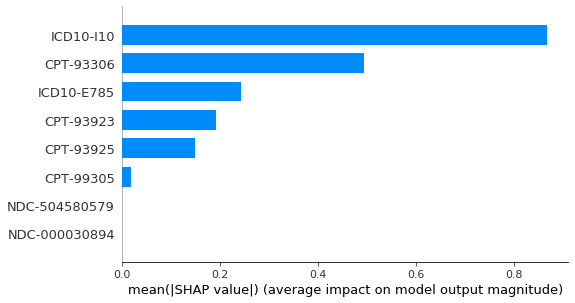

Fig. 12. SHAP Summary Plot.

Noticed it’s sightly differet from “gain” metrics: ICD10-E785 weighed a lot more in SHAP compared to gain.

SHAP also provides partial dependence plot: different from traditional partial dependence plot, the y-axis is SHAP value instead of y:

shap.dependence_plot('ICD10-I10', shap_values, data[columns[:-1]], interaction_index=None, show=False)

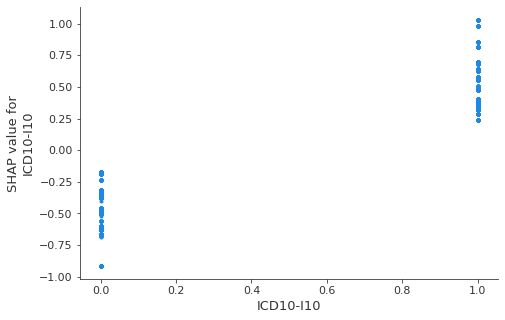

Fig. 13. SHAP Partial Dependency Plot.

Here easy to see ICD10-I10 = 0 general lower the target while ICD10-I10 = 1 raise the risk.

We are also able to plot the interactive effect among feature:

shap.dependence_plot('CPT-93923', shap_values, data[columns[:-1]], interaction_index='CPT-93925', show=False)

Fig. 14. SHAP Partial Dependency Plot.

Take these highly correlated variable as example: the dependency plot base is CPT-93923 where CPT-93923 = 1 positively contribute to the target. However on the positive side, when CPT-93925 = 1, it diminishes the effects from CPT-93923, which makes sense that in additive tree models correlated variables might not hurt performance but they work against each others.

Hope this post helps explain stuffs!

Share: Twitter, Facebook
